iPhone 16 Pro RAM Replacement - RAM Diode Mode Map & Power Rails

This iPhone 16 Pro had no broken screen, no shattered back glass and no obvious physical damage. It had only taken a relatively small drop—but afterward, it would no longer turn on.

The customer’s data was extremely important. Replacing the phone or installing another motherboard might produce a working device, but it would not recover the information stored on the original one.

In this case, the impact had caused a short inside one of the most difficult parts of the phone to repair: the RAM contained within the A18 Pro package.

The phone looked completely undamaged from the outside. Internally, it required one of the hardest physical procedures in iPhone microsoldering.

Watch the full video:

Watch on YouTube (with comments and chapters): https://youtu.be/lXuKj6WPFpw

Case Summary

Device: iPhone 16 Pro

Reported problem: No power after a small drop

Visible damage: None; front and back glass remained intact

Initial current draw: Approximately 0.03 amps followed by an immediate reset

Failed circuit: PP1V1_VDD2H_DDR_S2 RAM power rail

Confirmed cause: Electrically shorted RAM within the A18 Pro package

Repair: Removal of the failed RAM and installation of known-good donor RAM

Result: Successful boot and immediate access to the customer’s data

Service level: Advanced RAM-level iPhone data recovery

The Phone Looked Fine, but It Could Not Begin Booting

The first diagnostic step was to connect the motherboard to a DC power supply and observe its current consumption.

When prompted to turn on, the board quickly rose to approximately 0.03 amps and then reset. It continued making these brief startup attempts only while the power-button line was held.

That is not a normal boot sequence. The phone was beginning the earliest stages of startup, encountering a fault and immediately shutting itself back down.

The iPhone 16 Pro uses a layered motherboard, so I separated the two halves and tested the CPU side independently. With voltage supplied directly to the CPU board, it briefly drew approximately 0.01 amps before returning to zero.

This isolated the problem to the data-critical half of the motherboard.

Finding a Short on the RAM Power Rail

I began measuring the capacitors beneath the motherboard shields and found a complete short on:

PP1V1_VDD2H_DDR_S2

This is a 1.1-volt power rail associated with the phone’s RAM.

A short measured on a RAM rail does not automatically prove that the RAM itself has failed. The short could potentially come from a capacitor or another component connected to the same circuit.

RAM replacement is far too destructive and difficult to perform based on an assumption, so the failure needed to be confirmed first.

I set the power supply to the rail’s operating voltage of 1.1 volts and injected voltage into the shorted circuit while observing the board thermally. The resulting heat appeared directly over the RAM area of the A18 Pro package.

The power rail was shorted, and the failed component producing the heat was the RAM itself.

Why This Is Not a Normal RAM Chip Replacement

The RAM in an iPhone 16 Pro is not simply another visible chip mounted somewhere on the motherboard.

It is contained within the same large A18 Pro package as the processor. The RAM occupies the upper portion of that package, while the original CPU remains beneath it.

This means the failed RAM cannot simply be heated and lifted like a conventional motherboard component. The package has to be opened from the RAM side, destroying the failed RAM layer by layer while leaving the original processor underneath completely intact.

The procedure is destructive to the RAM but must be non-destructive to the CPU.

I used a razor blade to gradually cut and scrape away the failed RAM. The surrounding interposer limited the available working angle, and the material did not separate easily. A single uncontrolled slip could cut into the package substrate, damage the hidden solder pads or permanently destroy the original CPU.

There is no benefit to rushing this stage. The customer’s data depended on the original processor surviving the procedure, so the removal took as long as necessary.

After hours of controlled material removal, the RAM was finally separated from the top of the A18 Pro package.

The Short Disappeared After the RAM Was Removed

With the failed RAM completely removed, I measured the original 1.1-volt rail again.

The short was gone.

This was the decisive confirmation that the RAM module had been responsible for the phone’s no-power condition.

Without RAM installed, the board also produced the type of looping current behavior expected from a processor attempting to initialize without working memory.

I would normally perform an additional forced-DFU test at this stage to confirm CPU activity. On the iPhone 16 Pro, however, the required force-DFU test points were not accessible while the board was installed in my testing jig. I therefore continued using the cleared power rails, current behavior and physical condition of the exposed package as the available indicators.

The Customer’s Photos Were Not Stored in the Failed RAM

A failed RAM module does not necessarily mean that the customer’s photos, messages and other files have been erased.

RAM is temporary working memory. It is required for the phone to initialize and run, but it is not where the iPhone permanently stores the customer’s files.

The permanent data remained on the original NAND storage and was protected by encryption tied to the original processor.

That distinction is what made this repair possible.

The damaged RAM could be replaced while preserving the customer’s original CPU and NAND. Replacing the entire motherboard would have discarded the components needed to decrypt the data. Replacing only the failed RAM gave the original data-bearing system another opportunity to boot.

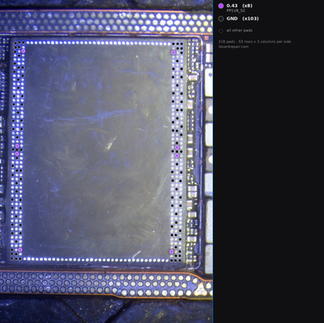

Mapping the Hidden A18 Pro RAM Pads

Removing the RAM exposed a pad field that is normally hidden inside the A18 Pro package.

I did not have a usable reference showing which of these pads were ground, which belonged to the major RAM power rails or what diode-mode readings should be expected. Before installing the replacement RAM, I documented the exposed surface.

This produced a practical diode-mode reference for the measurable iPhone 16 Pro RAM-side pads.

The map uses colors to represent matching diode-mode readings:

• Black: Ground

• Blue — approximately 0.11: PP0V5_VDDQL_S1

• Green — approximately 0.24: Pads sharing a similar diode-mode value

• Orange — approximately 0.28: A single measured pad

• Yellow — approximately 0.38–0.39: Another repeated measurement group

• Pink — approximately 0.43: PP1V8_S2

• Red — approximately 0.46: PP1V1_VDD2H_DDR_S2

Readings within approximately 0.01 of each other were grouped together visually.

Matching colors do not necessarily mean that every pad is electrically connected to every other pad of the same color. Several pads produced almost identical diode-mode readings despite not having continuity with one another.

This is therefore a diagnostic reference—not a complete functional pinout or schematic of the package.

These references can help diagnose future RAM placements. When replacement RAM fails to initialize, the most common possibilities include:

• One of the major RAM power rails being shorted to ground

• Unrelated pads becoming bridged together

• The RAM module being misaligned or incompletely attached

In an instance of having a single too-small solder ball, these readings help us determine how important each individual solder pad is and whether or not it is completely necessary to fully reball the chip again, or not.

Preparing the Original A18 Pro for Replacement RAM

The exposed CPU-side surface had to be made completely flat before another RAM module could be installed.

Pads that appear flat after scraping can sometimes become recessed when heated. A recessed pad may fail to contact the corresponding solder ball on the replacement RAM, producing a board that has no short but still cannot initialize its memory.

I ran solder over the exposed pads and filled the remaining low areas with solder paste. The surface was then heated, inspected and cleaned until it was ready to accept the donor RAM.

The goal was not merely to make the surface look smooth. Every required connection had to remain level enough to meet the replacement module.

Installing Known-Good Donor RAM

For the replacement, I used an iPhone 16 Pro RAM module that I had previously harvested from another A18 Pro package.

Harvesting donor RAM is effectively the inverse of removing failed RAM from a customer’s processor. The donor CPU is sacrificed while the RAM above it is preserved.

This particular module had already been installed and verified during a previous recovery, so I knew it was functional before using it on the customer’s board.

The donor RAM was removed from its temporary CPU, cleaned and reballed with fresh solder using a stencil.

After preheating the original A18 Pro package, I carefully positioned the RAM over the exposed pad field. There was no X-ray alignment system available, so placement had to be judged from the package edges and the limited view available beneath the module.

The package was heated only as much as necessary to allow the solder balls to settle into place.

Once it cooled, I checked the major RAM power rails again. None of the three primary rails were shorted, and the visible edges of the attachment appeared properly seated.

The iPhone Returned to a Normal Boot Sequence

The repaired board was installed in the testing jig and prompted to turn on.

Instead of rising to a few hundredths of an amp and immediately resetting, it progressed through a normal-looking startup sequence.

I connected the remaining parts needed for a complete boot.

The Apple logo appeared.

After a brief wait, the phone continued beyond the logo and reached the operating system. The original CPU, NAND and the newly installed donor RAM were now functioning together.

The RAM replacement was successful, and the customer’s data was accessible again.

Because the purpose of the repair was data recovery, the phone was connected to the recovery computer and the data was copied immediately.

What This Case Demonstrates

Visible damage does not determine the seriousness of an iPhone failure.

This phone had no cracked front glass, no damaged back glass and no obvious indication that anything significant had happened. A relatively small impact was still enough to create an electrical short within the A18 Pro RAM.

It also demonstrates why a no-power iPhone should not automatically be treated as a lost-data device.

The defective component prevented the phone from booting, but it did not contain the customer’s permanent files. By identifying and replacing only the failed RAM, the original encrypted data system could be preserved.

The phone did not need a replacement motherboard.

It needed its original motherboard repaired at the package level.

Frequently Asked Questions

Can a small drop cause an iPhone 16 Pro to stop turning on without cracking the glass?

Yes. The exterior glass may survive while the motherboard, solder connections or components inside a semiconductor package absorb enough mechanical shock to fail.

In this case, there was no visible exterior damage, but the RAM inside the A18 Pro package developed an electrical short.

Does failed RAM mean the photos and messages are gone?

Not necessarily.

RAM contains temporary working information while the phone is operating. Photos, messages and other permanent files are stored in NAND flash memory.

A RAM failure can prevent the phone from booting even while the permanent data remains intact.

Why not replace the entire motherboard?

A replacement motherboard contains a different processor and storage chip. It can make the phone functional again, but it does not contain the files from the original board.

For data recovery, the original CPU and NAND generally need to be preserved so that the encrypted information can be accessed.

Can RAM be replaced on every failed iPhone?

No. Success depends on the condition of the original processor package, its hidden pads, the surrounding motherboard and the cause of the failure.

If the CPU itself is internally damaged or the package substrate is destroyed, replacing RAM alone may not restore operation.

What should I do if my iPhone stopped turning on after a drop?

Do not approve a motherboard replacement or erase-and-restore procedure when the inaccessible data is the priority.

A board replacement may repair the phone but will not recover the files stored on the original motherboard. The device should first be evaluated by a specialist performing board-level iPhone data recovery.
